Shower Valve Stem Identification Guide & Faucet Cartridge Diagnostic Engine

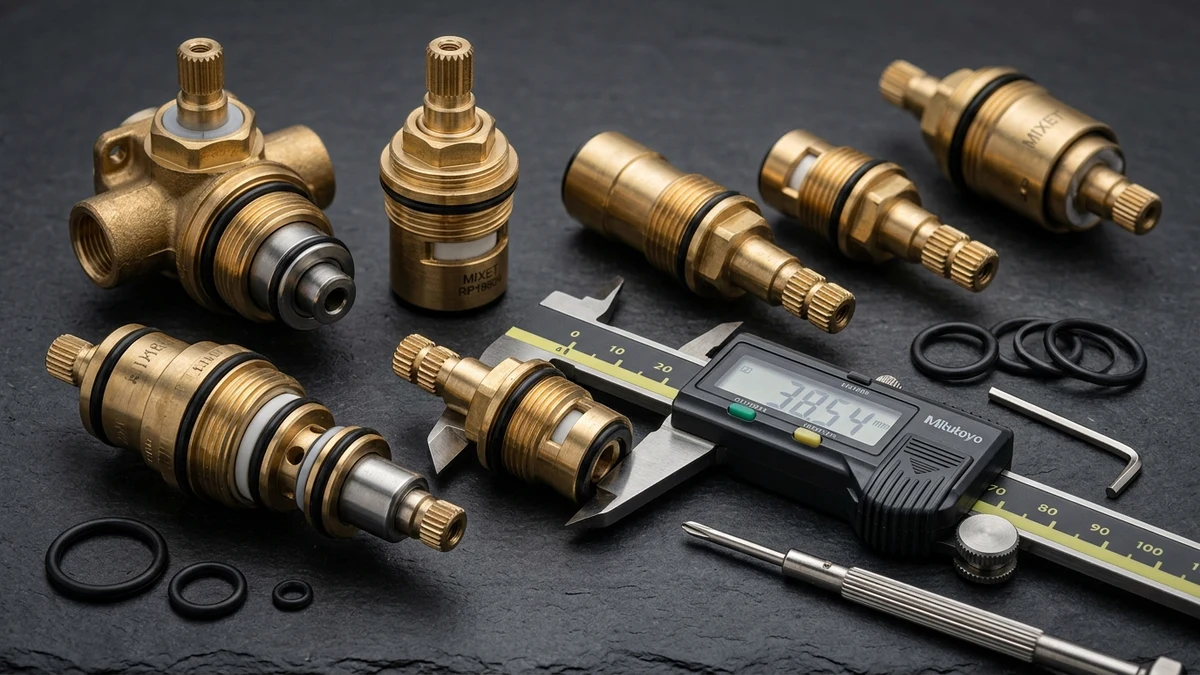

To identify an unknown shower valve stem, count the number of splines (teeth) on the broach tip, measure the overall stem length, and check the handle rotation mechanism. A 12-spline stem indicates Moen, while 16 splines indicate American Standard and 20 splines indicate modern Kohler or Price Pfister valves.
Attempting to extract a mineral-frozen Moen cartridge using standard channel-lock pliers will shear the brass center stem, leaving the outer sleeve fused inside the rough-in valve casting (requiring a $1,200 behind-the-wall valve replacement). Always remove the brass horseshoe retaining clip first and utilize an authentic OEM cartridge puller tool (Moen #104421).
View Broach Specification Standards
Moen: 12 splines, 0.370" broach dia (Posi-Temp 1222, Standard 1225)Kohler: 20 splines, 0.385" broach dia (Rite-Temp GP76851 / GP77759)American Standard: 16 splines, 0.375" broach dia (Nu-Seal A954440)Delta: D-Flat cam with stainless ball or RP19804 / RP46074 core
Shower Pressure-Balance Cartridge Exploded Blueprint
Master Shower Stem Broach Tooth Identification Matrix
| Broach Splines | Diameter | Primary Brand | Common OEM Part Number | Balancing Spool Type |
|---|---|---|---|---|
| 12 Splines | 0.370" | Moen / Mixet | 1222 Posi-Temp / 1225 Brass | Integrated in Cartridge |
| 16 Splines | 0.375" | American Standard / Sayco | Nu-Seal A954440 / Reliant | Ceramic Disc Core |
| 18 Splines | 0.375" | Sterling / Crane | Sterling A8000 / Dial-Eze | Integral Compression |
| 20 Splines | 0.385" | Kohler / Price Pfister | Rite-Temp GP76851 / 910-0130 | Separate Balancing Unit |
| 24 Splines | 0.375" | Symmons / Central | Temptrol TA-10 Spindle | Internal Piston Core |
| Smooth / D-Flat | 0.312" | Delta / Peerless | RP19804 / RP46074 MultiChoice | Rotational Limit Stop |
Interactive Shower Valve Stem & Cartridge Identification Matrix
Spline Counting & Broach Measurement Reference Guide
Plumbing fixture manufacturers engineer proprietary broach tips to guarantee that replacement handles seat firmly without slippage. The gear teeth (splines) on the stem tip follow strict industry geometries: Moen standardizes on 12 splines with a 0.370-inch diameter, while American Standard utilizes 16 splines at 0.375 inches.
Kohler Rite-Temp and Price Pfister utilize 20 splines at 0.385 inches, whereas Delta handles employ a smooth stem with dual flat sides (D-Flat or Double-D cam). Measuring overall length from the broach tip to the base gasket confirms whether you have a standard single-handle cartridge or an elongated two-handle diverter stem. Under ASSE 1016, pressure-balance spools equalize pressure surges but cannot compensate for extreme supply spikes; calibrate your water heater temperature rise and ASSE 1017 mixing valve setpoint to eliminate scald hazards.
Dripping Shower Head When Off: Spool vs Cartridge O-Ring Failure
When a shower head continues to drip steady drops after the handle is shut off, homeowners frequently suspect a faulty showerhead. However, showerheads contain no shutoff valves; water is escaping past the internal cartridge seal.
In modern pressure-balanced valves (such as the Moen 1222 or Kohler GP76851), water isolation depends on precision rubber O-rings seated against a micro-machined brass sleeve. Mineral etching or chlorine embrittlement allows continuous cold or hot leakage. If water pressure fluctuates and the shower turns scalding when a nearby toilet flushes, the internal stainless steel pressure-balancing spool has seized from hard water scale and must be replaced. Always maintain proper drainage slope with your tub spout height and trap arm pitch.
Statutory Plumbing Code & Engineering Citations
| Authority / Standard | Code Section | Statutory Tolerance / Parameter |
|---|---|---|
| ASSE International | ASSE 1016 / ASME A112.1016 | Performance requirements for automatic compensating shower valves and balancing spools |
| ASME / CSA | ASME A112.18.1 / CSA B125.1 | Plumbing supply fittings dimensional tolerances and spline broach standards |
| NSF International | NSF/ANSI 61 Annex G | Lead-free brass composition (≤0.25% weighted lead content) for drinking water contact |
| International Code Council | IPC Section 424.3 | Mandatory pressure-balancing or thermostatic mixing valve scald prevention at 120°F |
Field Calculation Tape & Session Scratchpad
No calculations logged yet. Calculations save automatically as you adjust parameters.
Frequently Asked Questions: Shower Valve Identification
01 How do I count the splines on a shower stem accurately?
Remove the handle screw and pull off the trim knob. Place a strip of white masking tape over the gear broach tip and press your thumb firmly to create an indentation imprint. Count the tooth marks with a pencil under good lighting, or mark one tooth with a fine Sharpie and count clockwise.
02 What cartridge do I need for a single-handle Moen shower?
If the handle pulls out toward you to turn water on and pushes in to shut off, it uses the classic Moen 1225 brass cartridge. If the handle rotates counterclockwise from cold to hot without pulling out, it uses the Moen 1222 Posi-Temp pressure-balanced cartridge.
03 Why is hot water lukewarm even when the water heater is set to 120°F?
Most pressure-balanced valves feature an adjustable Rotational Limit Stop (RLS) under the handle. In winter, as groundwater temperatures drop, this plastic cam stop must be rotated counterclockwise to permit further travel toward the hot water intake port.
04 How do I fix a shower valve cartridge stuck inside the brass valve body?
Mineral scale bonds rubber O-rings to the brass valve body. Never twist the stem with locking pliers, which snaps the brass core. Use a dedicated Moen Cartridge Puller (Model 104421) or apply white vinegar to dissolve mineral bonding before extracting.
